Bare Metal Works Sdn. Bhd.

Your Galvanizing Solutions Provider

Introduction of company

Incorporated on May 6, 2016, the company consists of two local shareholders and a technology partner from China. It is managed and run solely by local professionals while the Chinese partner provides technical expertise. The company was formed to take advantage of the minimal application of zinc alloy in the country and the rest of the world outside China.

Bare Metal Works Sdn. Bhd. works closely with the Cannuo Shanghai Zinc Alloy Research Institute and Cannuo Environmental Technology (Kunshan) Co Ltd to improve the quality of hot- dip galvanizing through the use of zinc alloy. Cannuo Shanghai is related to Yuguang Gold & Lead, the second largest producer of zinc in China, and together they supply zinc alloy to the whole of that country.

We not only focus on producing zinc alloy but also provide expert guidance on the use of zinc alloy to achieve better product quality, as well as reduce the consumption of zinc during the galvanizing process. In addition to that, we also offer the galvanizing technology which protect the environment. Our small but knowledgeable sales team is passionate about providing high quality products at reasonable prices while maintaining rapid delivery to our clients.

The Bare Metal Works management team comprises of experienced business owners who ensure that our operations run smoothly and efficiently, and always puts each customer’s and stakeholder’s interests first and foremost. We are a highly experienced technical team with more than 30 years of technical skills and know- how in hot-dip galvanizing, zinc alloy manufacturing and environmental protection.

Zinc Alloy for Galvanizing

Zinc Alloy
for Galvanizing

Zinc Nickel Alloy Series

Type of Alloy

Zinc-Nickel Alloy with 0.50% nickel
Zinc-Nickel Alloy with 1.00% nickel
Zinc-Nickel Alloy with 2.00% nickel

Scope of Application

Bulk Structural Parts Galvanizing
Steel Pipe Blow Galvanizing
Highways Parts Galvanizing

Benefits of Zinc – Nickel Alloy

Could effectively subpress sandelin effect of killed steel which contain 0.035% ~ 0.25% silicon
Avoid ultra thick coating and dark grey coating
Improve uniformity of coat
Improve the strength and resistance to weather
Improve surface brightness

Zinc Aluminum Alloy Series

Type of Alloy

Zinc-Aluminum Alloy with 5% Aluminum Content
Zinc-Aluminum Alloy with 7%-10% Aluminum Content
Zinc-Aluminum Alloy with 15% Aluminum Content
Zinc-Aluminum Alloy with 20% Aluminum Content
Zinc-Aluminum Alloy with 30% Aluminum Content

Scope of Application

Bulk Structural Parts Galvanizing
Steel Pipe Blow Galvanizing
Highways Parts Galvanizing
Construction Material Galvanizing
Steel Strips Galvanizing
High Temperature Fastening Parts Galvanizing

Benefits of Zinc – Aluminium Alloy

Increase surface brightness
Reduce zinc oxidation, reduce zinc oxide
Reduce thickness of coating
At 465°C and an aluminium content of more than 0.134%, the slag turn into zinc oxide

Purification Alloy

Scope of Application

Bulk Structural Parts Galvanizing
Highways Parts Galvanizing

Benefits of Purification Alloy

Remove metal oxide from zinc, non-metal oxide such as: S, P and other impurities, increase liquidity of molten zinc, improve the uniformity of the galvanized surface and reduce the usage of zinc in the process.
Reduce surface tension of the molten zinc and increase penetration of steel
Increase the corrosion resistance and surface brightness

Metal Strips Specialized Alloy

Type of Alloy

Alloy formulated based on R28 Series
Zinc-Antimony Series Alloy

Scope of Application

Continuous Steel Strips Galvanizing

Zinc Bismuth Alloy

Type of Alloy

Zinc-Bismuth Alloy with 1% Bismuth
Zinc-Bismuth Alloy with 3% Bismuth

Scope of Application

Galvanizing of Building Material
Steel Pipe Blow Galvanizing

Benefits of Zinc-Bismuth Alloy

Lower the surface tension of molten zinc in the zinc kettle, increase liquidity.
Reduce the thickness of zinc coat which reduce the zinc consumption
Reduce zinc oxide and slag

Zinc Tin Alloy

Type of Alloy

Zinc-Tin Alloy with 1% Tin

Scope of Application

Galvanizing of Building Materials
Steel Pipe Blow Galvanizing

Benefits of Zinc-Tin Alloy

Increase liquidity.
Reduce the melting point of zinc in the bath

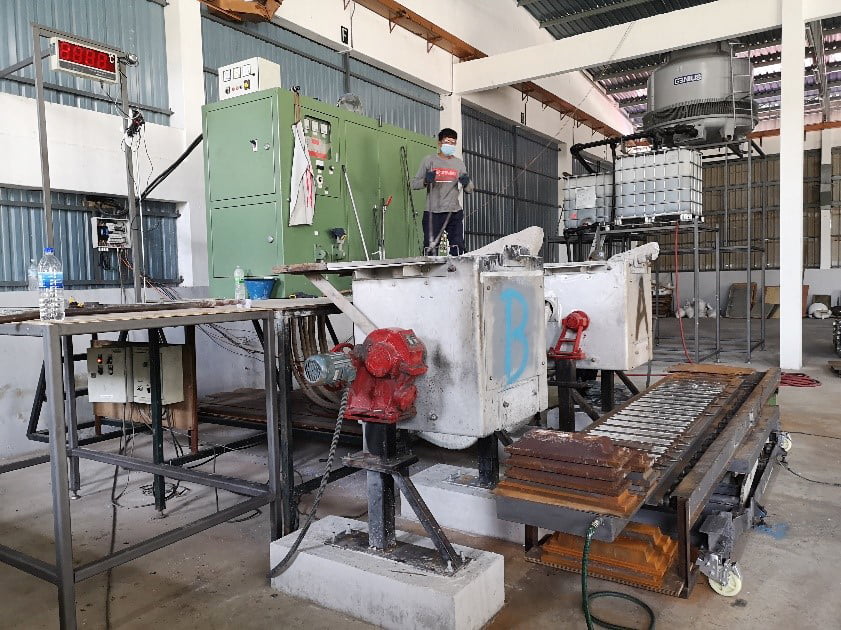

Zinc Alloy Production Floor

Zinc Alloy
Production Floor

Quality Control

We insist in providing the best quality possible to our customer, the zinc that goes into our furnace are the best quality, with 99.995% purity. This will make sure that impurities are controlled to the minimum. We test the Ni and Fe content for each batch of products.

Sacrificial Anode

Marine structures are predominantly made of steel. This makes them highly susceptible to corrosion. Seawater acts as an electrolyte, which causes a transfer of electrons from the steel structure through oxidation. If not dealt with, this process of gradual material reduction can degrade the structural integrity to the point of failure.

Besides coating, the standard protection method is the use of sacrificial anodes. These are made of a more active or less noble metal (usually zinc or aluminium). The sacrificial anodes are attached to the steel structure and since they oxidize more easily, they turn the structure itself into a cathode. The electrons leave the structure through the anodes which slowly dissolve. Applying this physics principle protects the steel structure against corrosion.

It applies to oil rig, wind farm, marine (all type of boat like super yatch and cargo ship), bridges and etc. We shall tailor made the anode according to customer’s requirement.

Zinc Copper Alloy (Brass)

Brass is made of 40% zinc and 60% copper, it is primarily use for bathroom accessories like water tap, valve and lock & key due to it’s nature of wear resistance. It is made of recycle wire or any other recycled copper scraps or swarfs, therefore it is secondary. We could have made it into brass rod should there be enough demand. Our primary target customers are mainly tap and valve manufacturer from China.

We welcome potential customer to join venture into brass rod manufacturing.

Recycled Non-Ferrous Metal Sourcing

We help customer to source all sort of recycled non-ferrous metal from Malaysian market to be shipped to any destination. Recycled non-ferrous metal refers to the following:

Zinc Based – Recycled zinc and zinc oxide. Copper Based – Copper wire, shiny berries, copper oxide, industrial copper swarfs like turning and end pieces. Aluminum Based – Recycled aluminum drink can, engine block etc. Nickel Based – Recycled nickel.

Should there be a need, we could help turning the recycled material into ingot to enable them to export to China.
